Understanding IVR Steps and Settings in Ringover

  • Updated

This article provides a detailed explanation of the IVR (Interactive Voice Response) steps available in Ringover, including the purpose of each step and the meaning of every configuration setting.

It is designed to help administrators understand how to build, customize, and optimize inbound call flows using features such as call queues, nested IVRs, external routing, AI agents, SMS automation, call scripts, and end-of-call surveys.



Available IVR Steps



1. Ringover Users

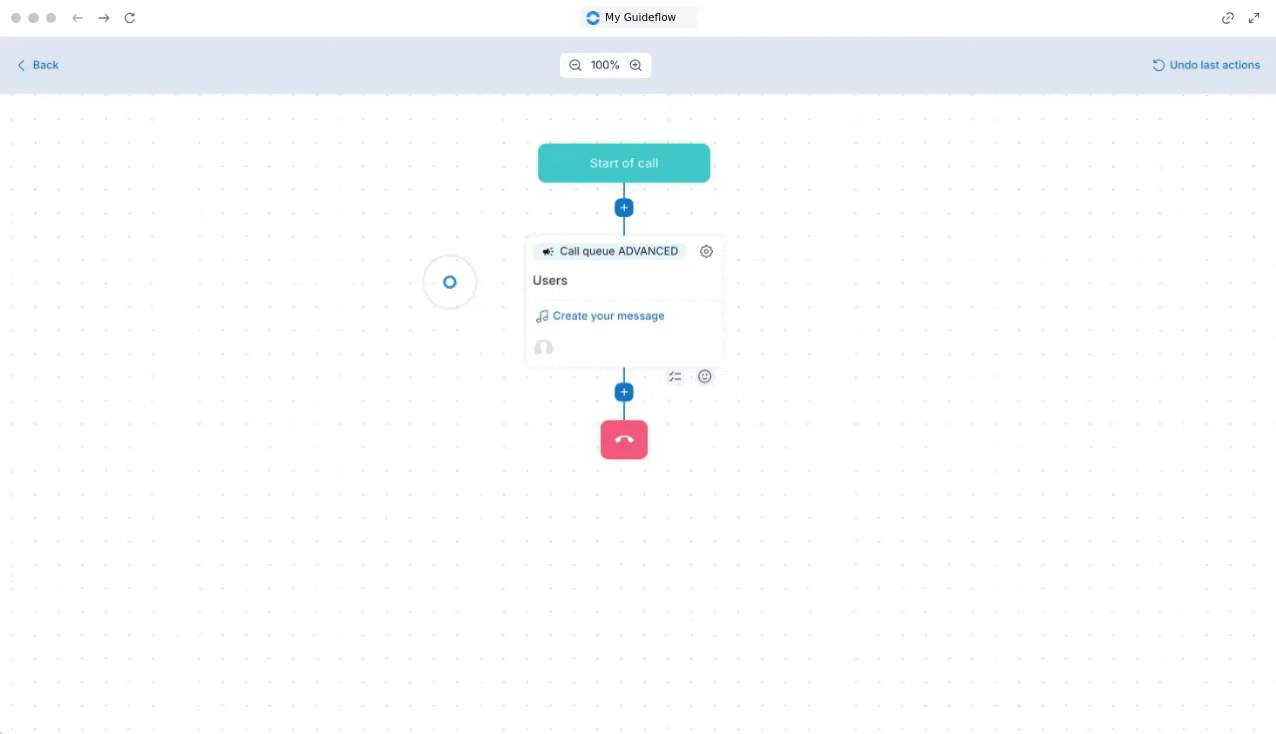

The Ringover Users or Call Queue step routes incoming calls to one or multiple Ringover users.



Main Settings

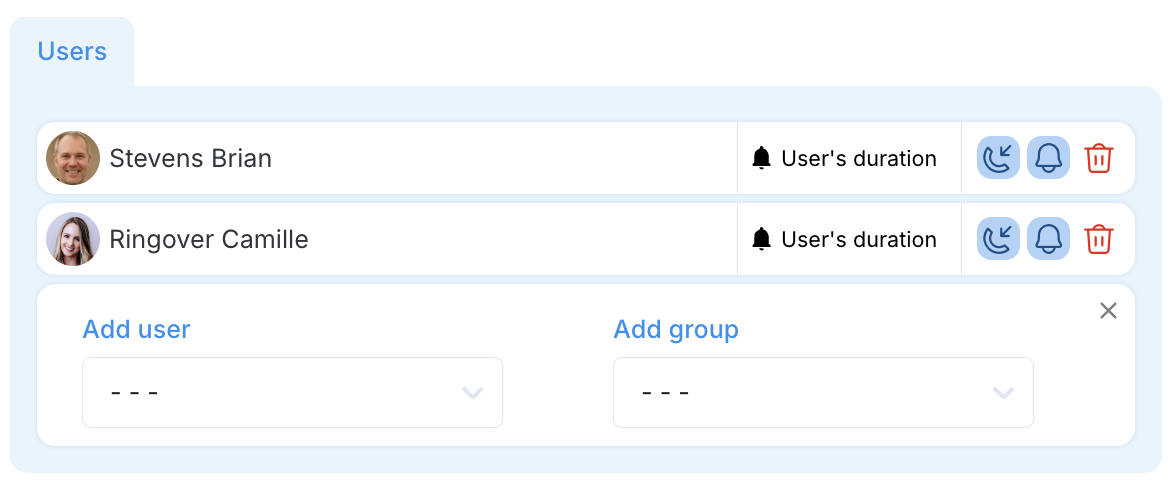

Add users and groups

Add one or several Ringover users or groups to receive incoming calls.






Queue configuration depends on the license type:

  • Business and Advanced queues allow both users and groups

  • Smart queues only allow users



Available actions:

  • Add users and groups: Adds another user/group to the queue.

  • Delete button: Removes the user from the queue.

  • Reorder queue members: Defines the order in which users or groups are called when the Cascading forwarding mode is enabled.

  • User duration: Defines how long a user or group rings before the call moves to the next routing action.

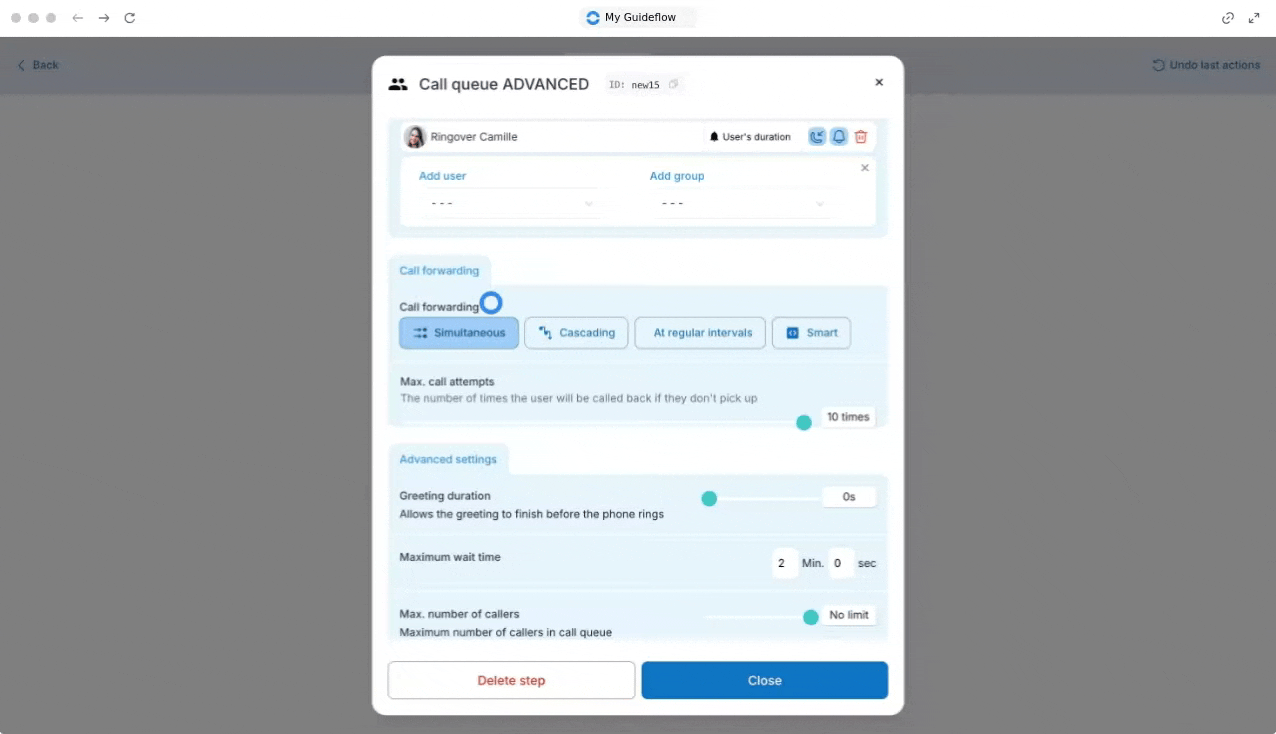

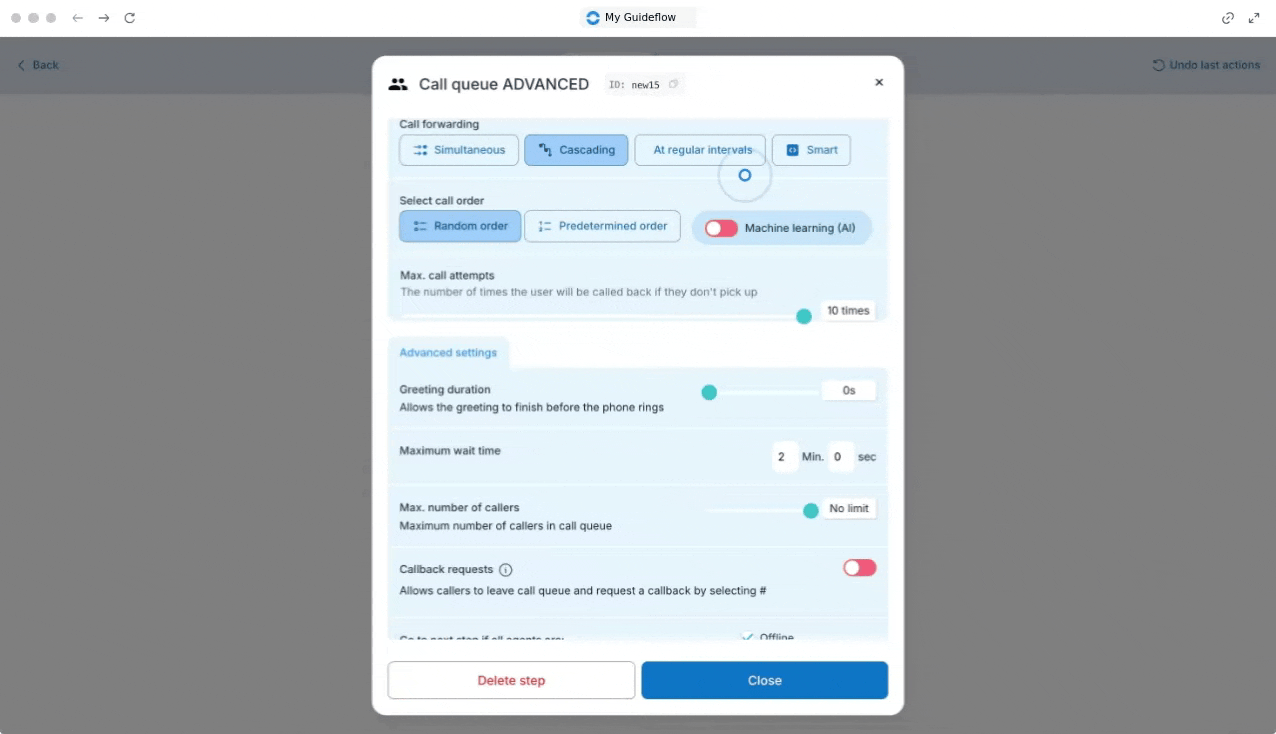

Call Forwarding Modes

The call forwarding mode determines how incoming calls are distributed between the users configured inside the queue.



Ringover (1).gif



  • Simultaneous: All users ring at the same time.

  • Cascading: Users ring one after another according to the configured order. The queue member order is used when this forwarding mode is selected.

💡 When a group is added to the queue, it keeps the internal routing order and ringing duration configured in the Group settings. The IVR respects the group configuration and does not override these settings.

  • At regular intervals: Calls are distributed to users using rotating intervals. The delay between each call attempt is defined in seconds.

  • Smart: Automatically routes calls using intelligent distribution logic.

  • Fastest: Routes the call to the first available user who can answer the quickest.



💡 For additional technical information about Smart Routing configuration and webhook behavior, refer to the Ringover Developer documentation.



Machine learning (AI)

The Machine learning (AI) option allows Ringover to prioritize call routing based on previous interactions with the caller.



This option is available with:

  • Cascading

  • At regular intervals

When enabled, additional routing settings become available to define how calls should be distributed based on call history and interaction data.






💡 For a detailed explanation of the available AI routing rules and configuration options, check our article: Setting priority routing rules for your IVR.

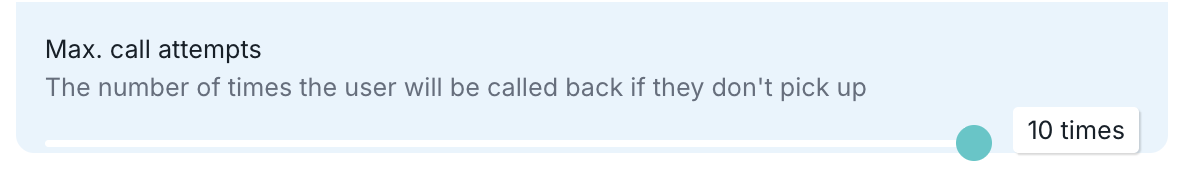

Max. Call Attempts

Defines how many times the system retries users if nobody answers.

Example:

  • If set to 3, Ringover will attempt the queue three times before moving to the next step.

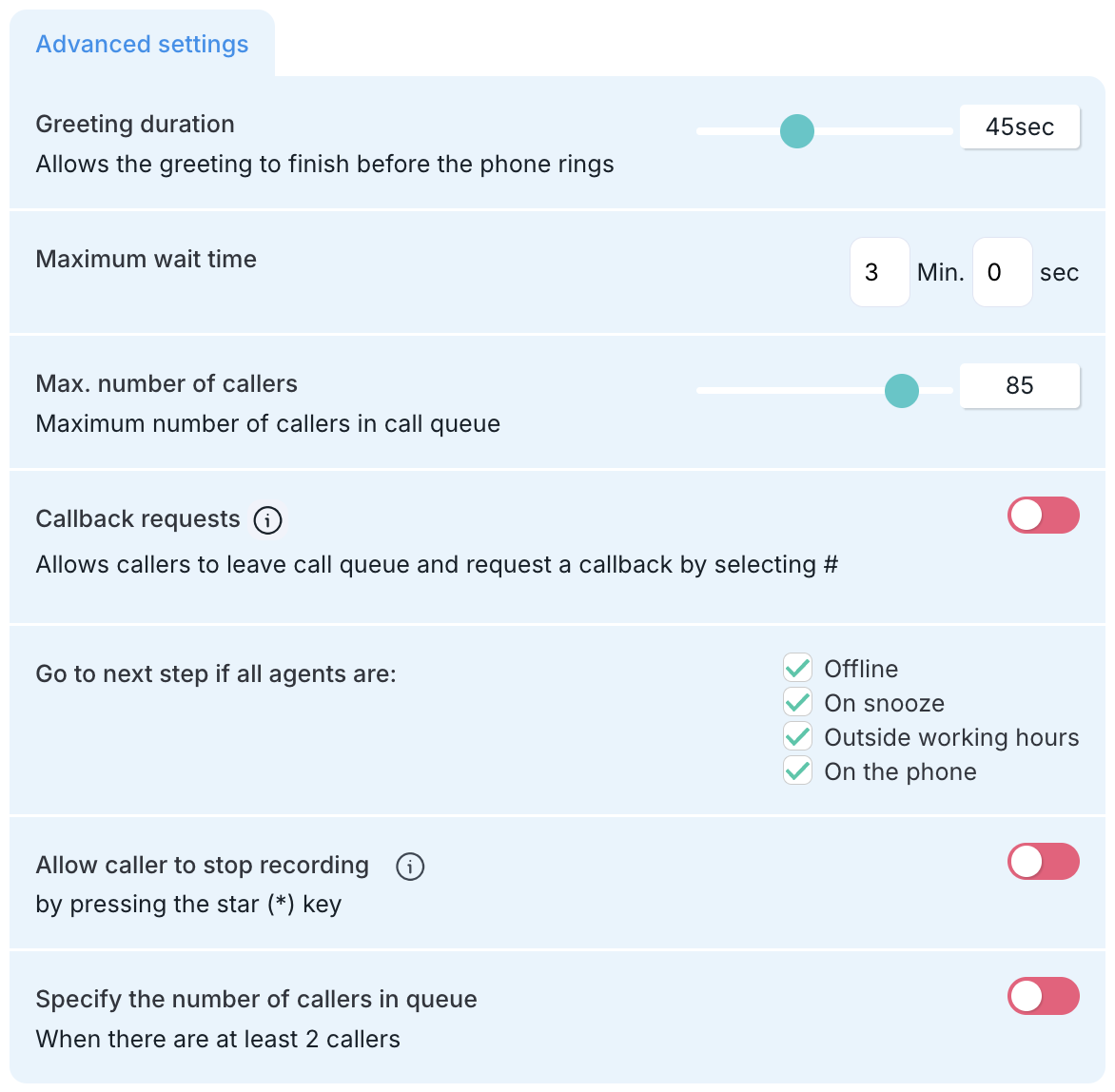

Advanced Settings

The advanced settings section provides additional controls for queue behavior, caller experience, and automatic routing conditions.





  • Greeting duration: Defines how long the greeting message plays before users begin ringing.

  • Maximum wait time: Defines how long callers can stay in the queue before the call exits the queue.

  • Max. number of callers: Defines the maximum number of callers allowed in queue simultaneously.

  • Callback requests: Allows callers to leave the queue and request a callback by pressing the # key.

  • Allow caller to stop voicemail recording: Allows callers to end their voicemail message by pressing the star (*) key.
  • Specify the number of callers in queue: Announces the caller’s queue position during the waiting period.
  • Go to next step if all agents are: Automatically skips the queue and moves callers to the next IVR step if all agents match the selected statuses. This helps avoid unnecessary waiting time when no users are available.

Available statuses:

  • Offline: The user is disconnected from Ringover.
  • On Snooze: The user has manually activated Snooze mode, temporarily pausing incoming call notifications.
  • Outside working hours: The user is outside configured business hours.
  • On the phone: The user is already handling another call.

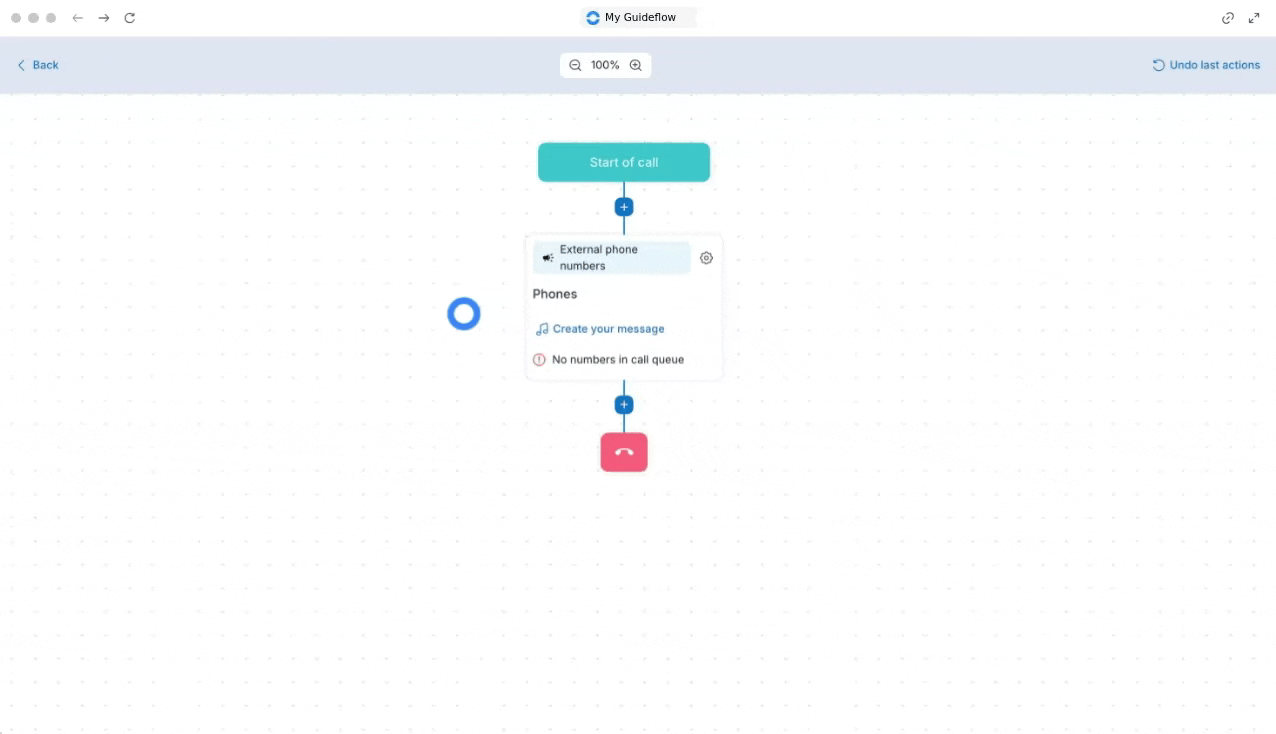

2. External Phone Numbers

The External Phone Numbers step forwards incoming calls to telephone numbers outside the Ringover workspace.

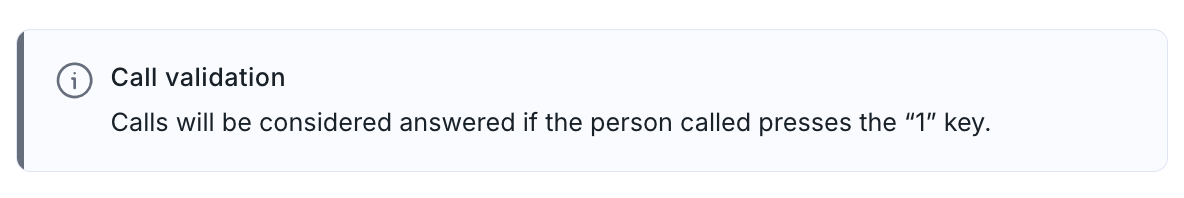

Call Validation

The call validation system ensures that forwarded calls are answered by a person instead of voicemail or automated systems.

Calls are considered answered only if the recipient presses the “1” key.

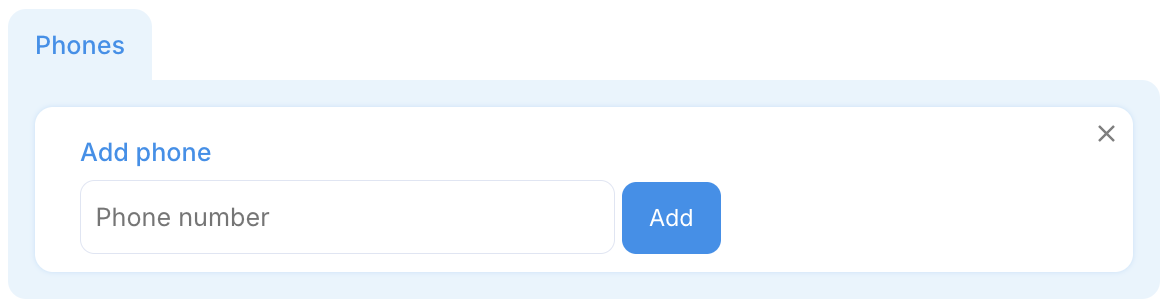

  • Add phone option: Administrators can add external phone numbers to receive calls. If no number is configured, the step will show: “No numbers in call queue.”





💡 We recommend you to add the number in the international format number.



Call Forwarding Modes

Settings External phone numbers support the same routing modes as Ringover users:

  • Simultaneous

  • Cascading

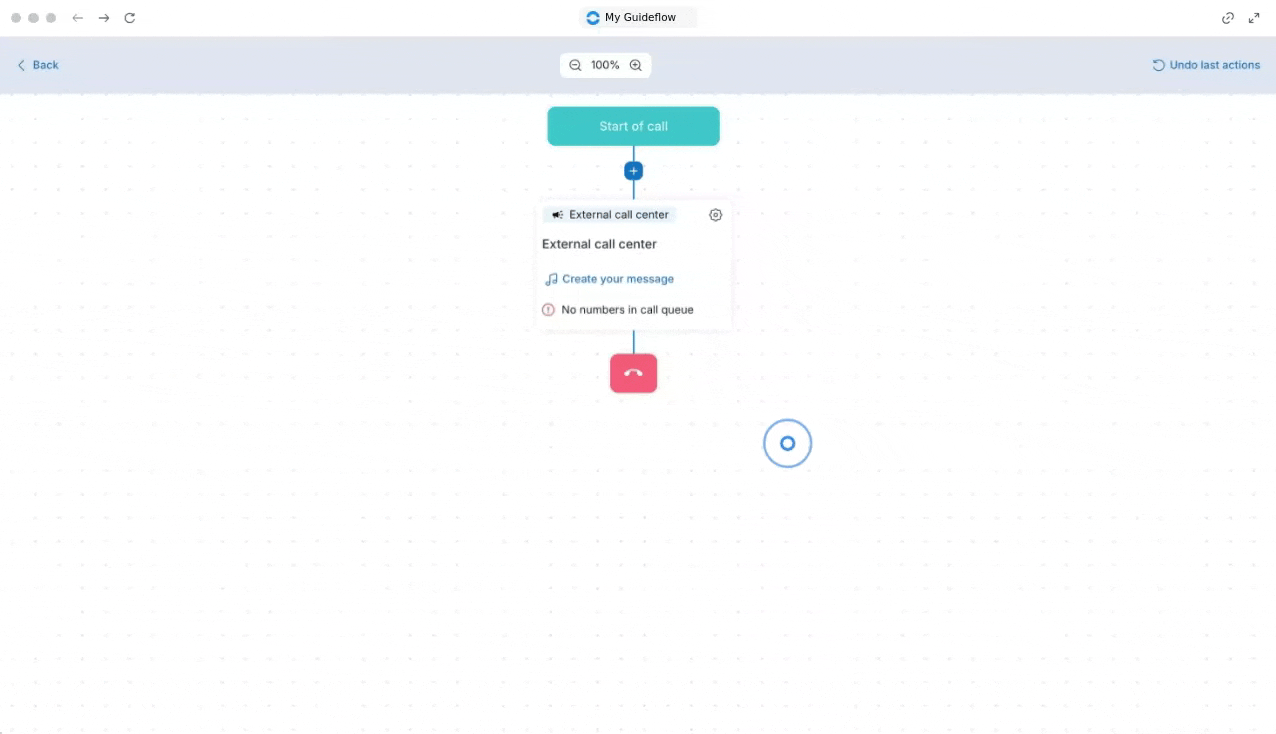

3. External Call Center

This step is used to transfer calls to an external call center configuration outside the Ringover user environment. The External Call Center step routes calls to an external call center or third-party provider. Calls forwarded through this step are billed at $0.03/min.






Configuration

  • Add phone option: Administrators assign external numbers that will receive routed calls. If no number is configured, the step displays: “No numbers in call queue.”



4. Nested IVR

A Nested IVR allows callers to navigate through multiple voice menu levels by pressing keypad options such as 1, 2, or 3.

When a caller presses a configured digit, the call is redirected to another IVR menu or routing step.



This allows administrators to create structured call flows with multiple menu layers and routing paths.






💡 For detailed setup instructions, check our article: Creating an IVR with voice menu (press 1, press 2…).

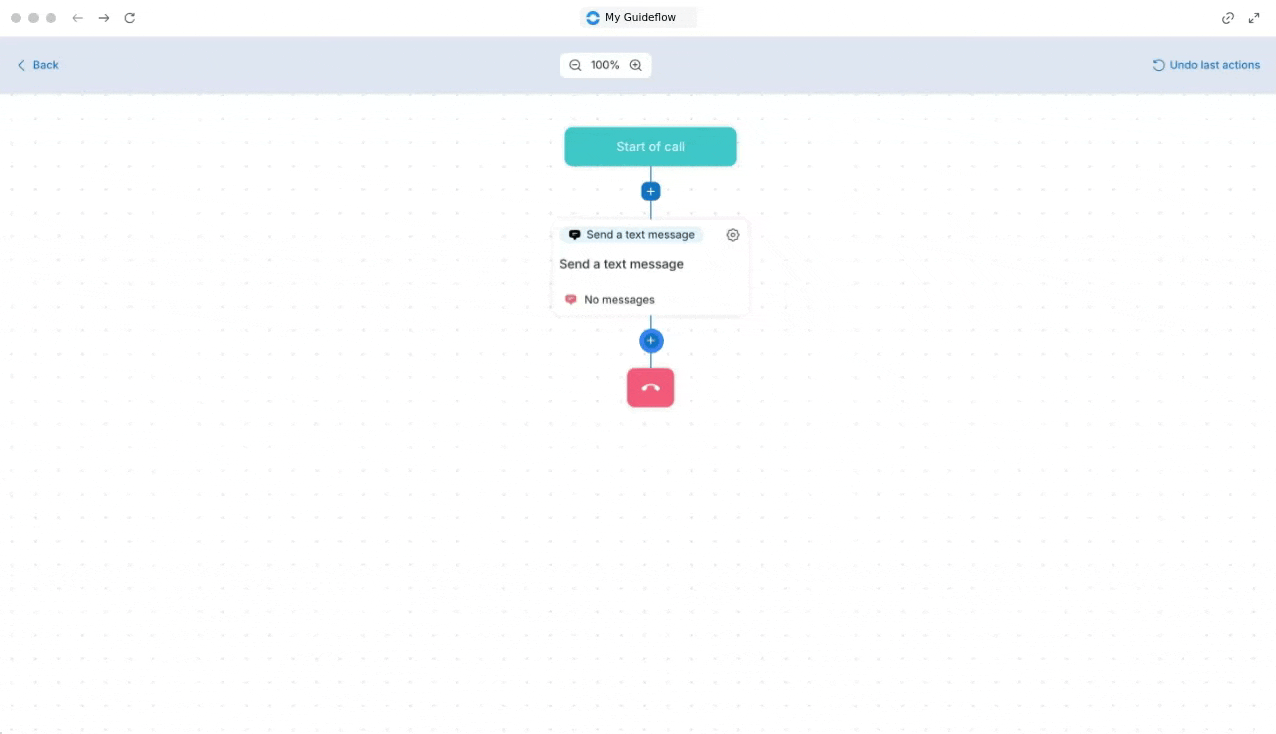

5. Send A Text Message

The Send a Text Message step automatically sends an SMS message during the IVR flow.



Ringover (1).gif



Message Settings

  • Sender: Defines which number sends the SMS:

    • Generic number

    • Dedicated business number

  • Your message: Defines the SMS content.



💡 Character limits and pricing:

• Standard SMS messages are limited to 160 characters per SMS segment.
• Longer messages may generate multiple SMS charges.
• SMS costs are billed separately according to your pricing plan.

For more information about SMS pricing, character limits, and usage control, refer to the following article: Texting: Understanding and controlling usage.

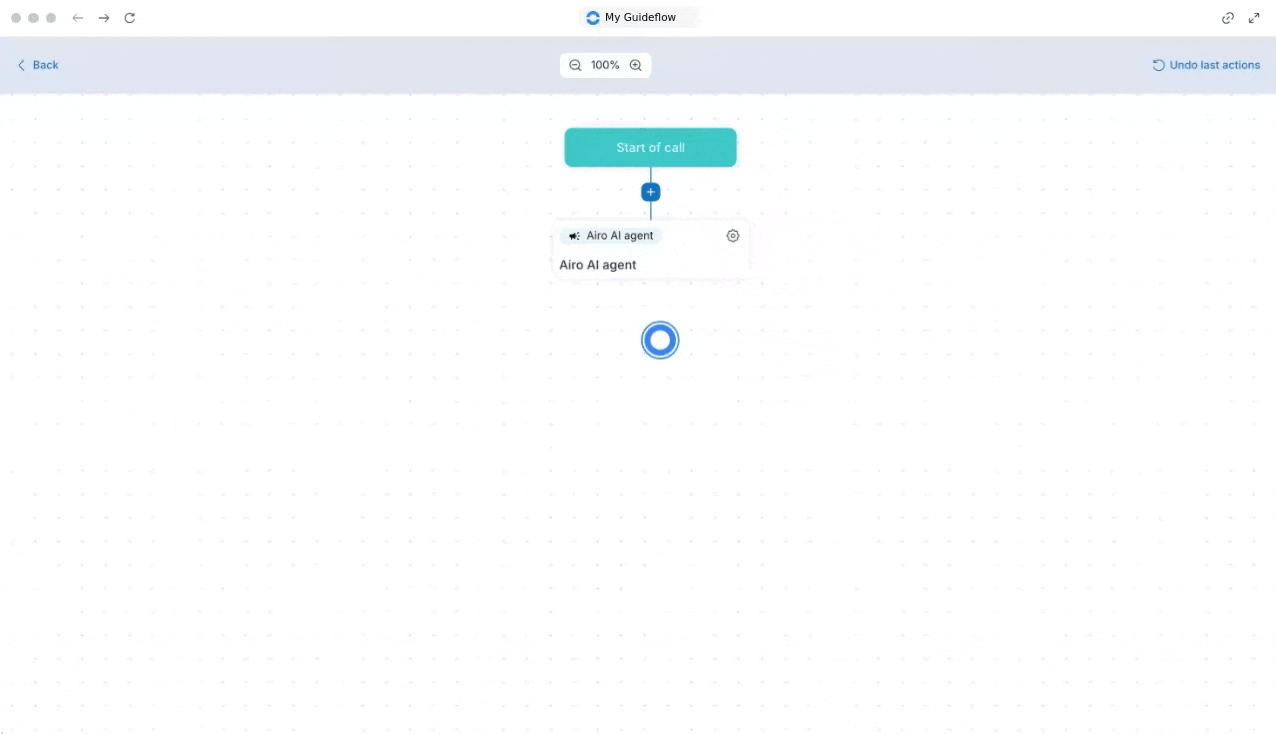

6. Airo AI Agent

The Airo AI Agent step routes callers to an AI-powered voice agent configured inside the AIRO Dashboard.






AIRO Agent Settings

  • Select your bot: Choose which AI agent should handle incoming calls.

  • AIRO Portal Shortcut: The “AIRO” button opens the dedicated AI management interface where administrators can:

    • Create an AI agent

    • Edit an existing AI agent

    • Add new resources



You now know how to configure and manage IVR steps and routing settings in Ringover! 🎉
